1. Product characteristics: the stator is made up of core steel and winding, which creates rotation magnetic field. The rotor is made up of core steel and pure aluminium bar, which generates inductive electromotive force to form inductive current and electromagnetic torque achieving conversion between electrical energy and mechanical energy. The advantages of shaded pole motor are stable and reliable, low noise level and without electro magnetic interference.
2. major application: widely used in low load starting home appliances such as ventilators, humidifiers, warm air blowers, mini pumps, tower fans and etc.
3. major technical data:
|
额定电压(Rated voltage)
|
伏(V)
|
100-240
|
|
额定频率(Rated frequency)
|
赫兹(Hz)
|
50-60
|
|
输入功率(Input power)
|
瓦特(W)
|
8-50
|
|
工作电流(current)
|
毫安(mA)
|
100-1000
|
|
绝缘等级(Insulation class)
|
级(class)
|
A/E/B/F
|
|
输出转速rotation speed
|
转/分(r/min)
|
800-2600（负载loaded）
|
|
已有认证 certification
|
UL,CUL,TUV,CCC
|
Remarks：motor output shaft can be custom-made（Max OD φ5mm）

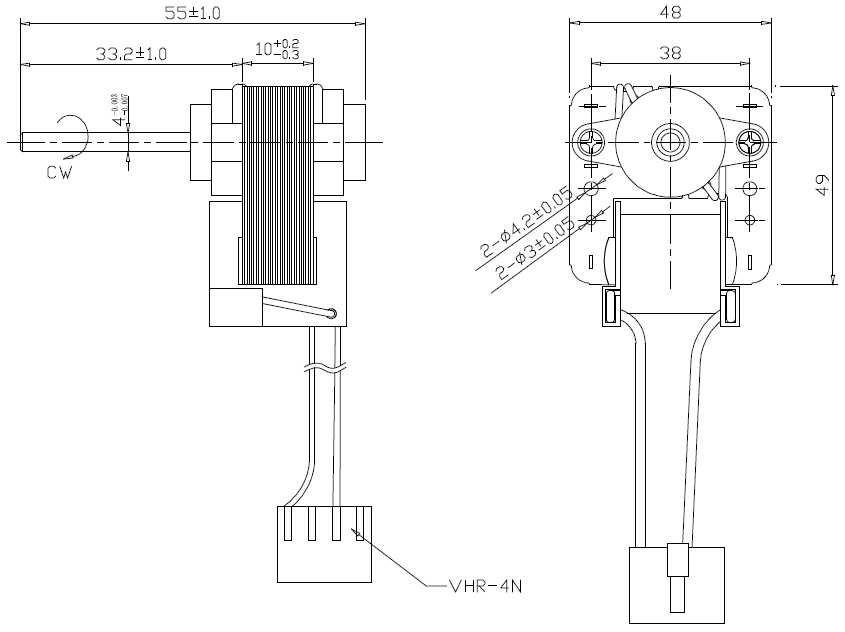

4. outline drawing:
