1. Product characteristic:This product is combined with permanent magnetic motor and gear reduction structure. Its advantages are compact in size, low-power, low noise level, large output torque and lower voltage supply.
2. Major applications:This product is mainly applied in mechanism requesting constant speed and automatic control system as driving engine. Widely used in box fans, electric fans, electric heaters, air conditioners, microwave ovens, dish washers, stage lightings, laminators, curtain drawing devices and etc.
3. Major technical data:
|
Rated voltage
|
V
|
DC 12V/DC24V
|
|
Rated frequency
|
Hz
|
50 Hz
|
|
Input power
|
W
|
4W
|
|
Insulation class
|
class
|
A.E
|
|
Rotation speed
|
r/min
|
0.8-100r/Min
|
Remarks：Motor output shaft can be custom-made(maximum diameter of not more than φ7 mm).

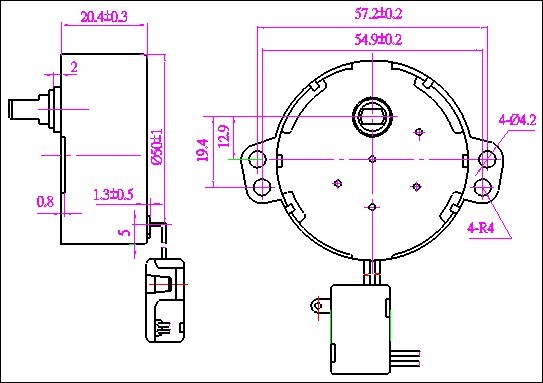

4. Outline drawing:
