1. Product characteristic:This product is combined with permanent magnetic motor and gear reduction structure. Its advantages are compact in size, low-power, low noise level and large output torque.
2. major applications:Mainly applied in mechanism requesting constant speed and automatic control system as driving engine. Widely used in box fans, electric fans, electric heaters,air conditioners, microwave ovens, dish washers, stage lightings, laminaters, curtain drawing devices and etc.
3. major technical data:
|
额定电压(Rated voltage)
|
伏(V)
|
AC12V-240V
|
|
额定频率(Rated frequency)
|
赫兹(Hz)
|
50 Hz/60 Hz
|
|
输入功率(Input power)
|
瓦特(W)
|
4W
|
|
绝缘等级(Insulation class)
|
级(class)
|
A.E.B.F.H.N
|
|
输出转速 rotation speed
|
转/分(r/min)
|
0.8-100r/Min
|
|
已有认证certifications
|
UL、TUV、CEE、VDE
|
Remarks：motor output shaft can be custom-made（Max OD φ7mm）.

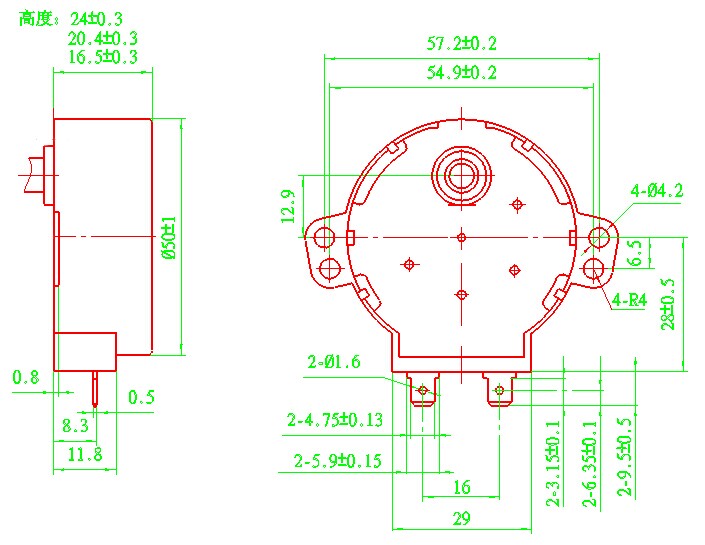

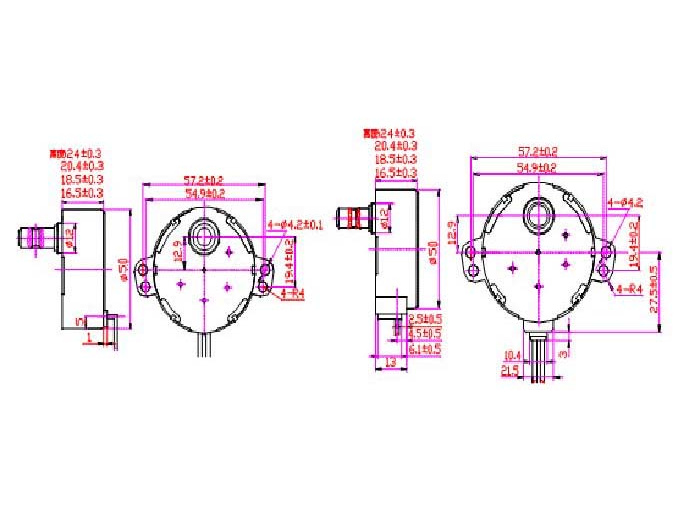

4. outline drawing:
