1. Features:
This product is a structure of permanent magnet synchronous motor and gear into one of the micro motor. With a compact, low power, low noise characteristics.
This product rotation is random, directional mechanical devices can be set to obtain directional rotation.
2 .Main applications:
For constant rotation and automatic control systems for drive components. Widely used in fan shook his head, rotating lamps, players and other products.
3. Main technical parameters:
| Ratedvoitage |
V |
12V-240V |
| Rated frequency |
Hz |
50/60 Hz |
| Input power |
W |
4W |
| Insulation scale |
Grade |
A.B.E.F |
| Output speed |
r/min |
0.8-100r/min |
| Have been certified |
UL、TUV、CEE |
|
Note: 1, the motor output shaft length, thickness can be customized to user requirements

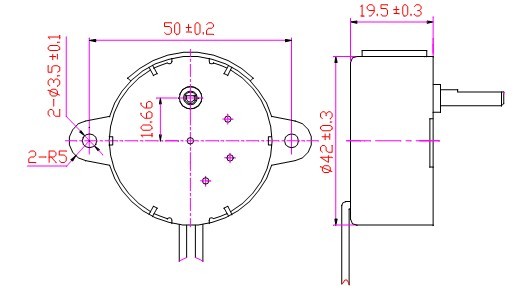

4. Outline:
